The Elite® Series Heat Pump System (1.5–2 Ton) is a complete home comfort solution, including the EL19KPV heat pump, CBK48MVT air handler, and ECB48-9CB-P electric heat kit. Enjoy quiet, energy-efficient heating and cooling with advanced safety features and a fully 2025-compliant R-454B refrigerant system.
Key Benefits: ✅ 1.5–2 Ton variable-capacity heat pump for year-round comfort ✅ SEER2 18 and HSPF2 8 for efficient cooling and heating ✅ Quiet operation with sound levels as low as 61 dBA ✅ Complete bundle with heat pump, air handler, and electric heat kit
Upgrade your home’s heating and cooling with the Elite® Series Heat Pump System. This complete bundle pairs the EL19KPV heat pump, CBK48MVT variable-speed air handler, and ECB48-9CB-P electric heat kit, delivering efficient, reliable, and quiet year-round comfort for your home.
SEER2: 18
SEER2 & HSPF2 Ratings
SEER2: 18
HSPF2: 8
With a SEER2 of 18 and HSPF2 of 8, this 1.5–2 Ton Elite® Series Heat Pump System provides powerful cooling, precise heating, and energy savings while meeting 2025 refrigerant standards. It uses R-454B refrigerant, offering environmentally responsible operation and reduced greenhouse impact.
Efficient Heating & Cooling – Heat Pump: EL19KPV
The EL19KPV heat pump delivers mid-efficiency, variable-capacity heating and cooling for consistent indoor comfort. ENERGY STAR® Certified and eligible for federal tax credits, it reduces energy costs while providing quiet operation at sound levels as low as 61 dBA. The high-efficiency outdoor coil ensures excellent heat transfer, and the digital-ready design allows seamless integration with Lennox S30/S40 Smart Thermostats.
Supplemental Heating – Heat Kit: ECB48-9CB-P
The ECB48-9CB-P Electric Heat Kit provides fast, reliable backup heat. Helix-wound nichrome elements deliver rapid warmth with lower element temperatures for extended service life. Safety is prioritized with limit controls, supplemental thermal cutoffs, and factory-installed circuit breakers. All controls are pre-wired and plug directly into the air handler for easy installation.
Reliable Airflow – Air Handler: CBK48MVT-018/024-71
The CBK48MVT variable-speed air handler ensures consistent airflow and energy-efficient operation. Its all-aluminum Quantum™ Coil resists corrosion, while the variable-speed blower motor maintains steady temperatures and improves overall comfort. Optional electric backup heat provides supplemental warmth during colder periods. The fully insulated cabinet reduces noise and prevents condensation, and the Refrigerant Detection System (RDS) adds a layer of safety in the event of a refrigerant leak.
Why Choose the 1.5–2 Ton Elite® Series Heat Pump System?
This system is perfect for homeowners seeking a complete, integrated heating and cooling solution. It delivers precise temperature control, efficient energy usage, and reliable airflow in a single package. Installation is straightforward, safety features like the RDS are included, and the system is fully compatible with 2025-compliant refrigerants, providing long-lasting comfort, energy savings, and peace of mind.
Key Benefits at a Glance
✅ 1.5–2 Ton variable-capacity heat pump for year-round comfort ✅ SEER2 18 and HSPF2 8 for efficient cooling and heating ✅ Quiet operation with sound levels as low as 61 dBA ✅ Complete bundle with heat pump, air handler, and electric heat kit ✅ Braze-free installation for modern HVAC setups ✅ Built-in Refrigerant Detection System (RDS) for added safety ✅ Fully 2025-compliant system with eco-friendly R-454B refrigerant
Heat Pump Overview
Model #EL19KPV-024
Product Overview
Elite® Series | EL19KPV Heat Pump
The EL19KPV is a mid-efficiency, variable-capacity heat pump designed to be digital-ready and fully compatible with 2025-compliant refrigerants.
Energy Efficiency & Performance
Efficiency ratings up to 19.50 SEER2 and 9.00 HSPF2 deliver solid year-round energy savings.
Variable-capacity compressor enhances temperature and humidity control by adjusting output to match comfort needs.
ENERGY STAR® Certified – meets or exceeds federal standards for energy-efficient performance.
Eligible for Federal Tax Credit under the Energy Efficient Home Improvement Credit (IRC Section 25C).
High-efficiency outdoor coil ensures excellent heat transfer and reduced air resistance, supporting optimal system efficiency.
Digital-ready when paired with a compatible digitally enabled furnace or air handler and a Lennox S30 or S40 Smart Thermostat.
Quiet Operation
Operating sound levels as low as 61 dBA ensure quiet performance in residential settings.
Precision-balanced, direct-drive outdoor fan minimizes noise and helps extend product life through smooth, efficient operation.
Craftsmanship & Reliability
Quantum™ Coil – constructed with a proprietary Lennox-exclusive aluminum alloy and rigorously tested for performance under extreme conditions, offering superior corrosion resistance.
Durable cabinet construction – features heavy-gauge, galvanized steel panels, a louvered coil guard, a baked-on powder-coated finish, and a robust composite base and top for long-term protection against rust and corrosion.
Supports braze-free installation, offering increased flexibility with 2025-compliant fittings.
Integrated drainage holes prevent moisture buildup in the base pan, protecting internal components.
Sustainability & Safety
Built-in Refrigerant Detection System (RDS), as required for A2L (mildly flammable) refrigerants, ensures safe operation for systems containing over four pounds of refrigerant. The RDS includes:
A sensor that detects refrigerant leaks
A control board that halts unit operation and activates the indoor blower to disperse refrigerant safely
Uses R-454B refrigerant, which complies with 2025 EPA regulations for lower Global Warming Potential (GWP) refrigerants.
Product Specifications:
Brand
Lennox
Catalog Number
25J81
Model/Part Number
EL19KPV-024-230
Base Unit of Measure
Unit(S)
Family
EL19KPV
Series
Elite
Product Voltage
208-230 VAC 1 Ph 60 Hz
Cooling Capacity
2 Ton
Product Depth
35 Inch
Product Width
30.5 Inch
Product Height
39 Inch
Compressor Stages
Variable Capacity
Type
Variable Capacity Heat Pump
SEER2
Up to 19.5 SEER2
HSPF2
Up to 9.0 HSPF2
Gross Weight
225 Lbs.
Refrigerant Type
R-454B

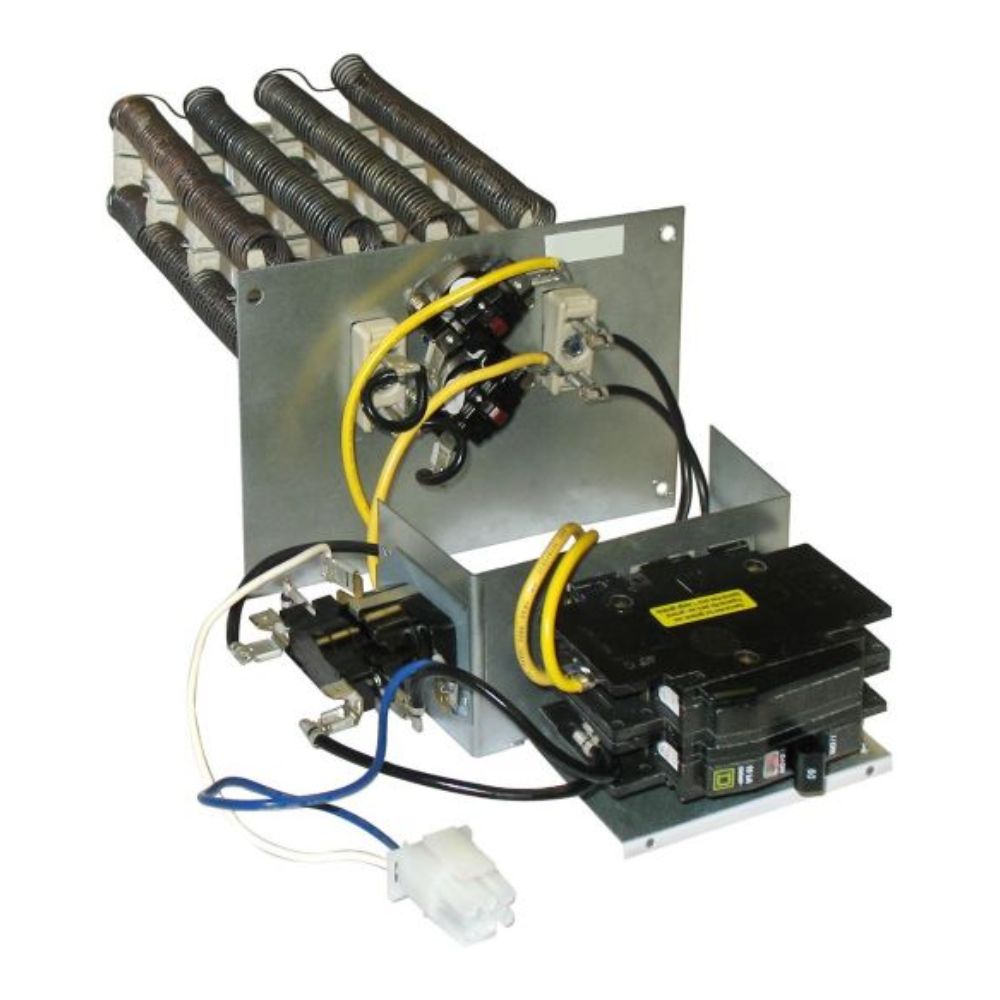

Heat Kit Overview
Model #: ECB48-9CB-P
Lennox ECB48 Electric Heat Kits
The Lennox ECB48 Electric Heat Kits are ETL listed and designed for field installation directly inside the unit cabinet. These kits are available in a variety of voltage and kilowatt configurations—refer to the appropriate Air Handler Tables for model compatibility.
Featuring helix-wound nichrome heating elements, the kits deliver rapid heat transfer by positioning the elements directly in the airflow. This design ensures lower element temperatures and extends the lifespan of the components. Each heating element is equipped with a precisely located limit control that includes a fixed shut-off temperature and automatic reset for added safety. An additional thermal cutoff limit provides a secondary layer of protection in the event of excessive temperatures.
Heater control relays are included as standard and operate the elements in equal increments, turning them on and off sequentially based on signals from the control board, with built-in time delays between each stage for efficient performance. The control box and access panel are built from heavy-gauge galvanized steel to ensure long-term durability. Units are factory-assembled with all controls pre-installed and wired. Low-voltage electric heat controls plug directly into the air handler for easy connection.
Circuit Breaker Models (CB)
CB models are equipped with integrated circuit breakers that offer protection against overload and short circuits. These breakers are factory-mounted and wired within the electric heat unit. They are both current-sensitive and temperature-actuated, and feature manual reset functionality. In many regions, these built-in breakers meet code requirements as a disconnecting means, eliminating the need for a separate field-supplied disconnect. Always consult local electrical codes for compliance before installation.
Product Specifications:
Brand
Lennox
Catalog Number
27A54
Model/Part Number
ECB48-9CB-P
Base Unit of Measure
Unit(S)
EAN / UPC
66255161445
Product Voltage
208/230v 1ph 60 hz
Gross Weight
5.5 LB
Family
ECB48
Series
ECB48
For Use With
CBK48 Series Air Handlers

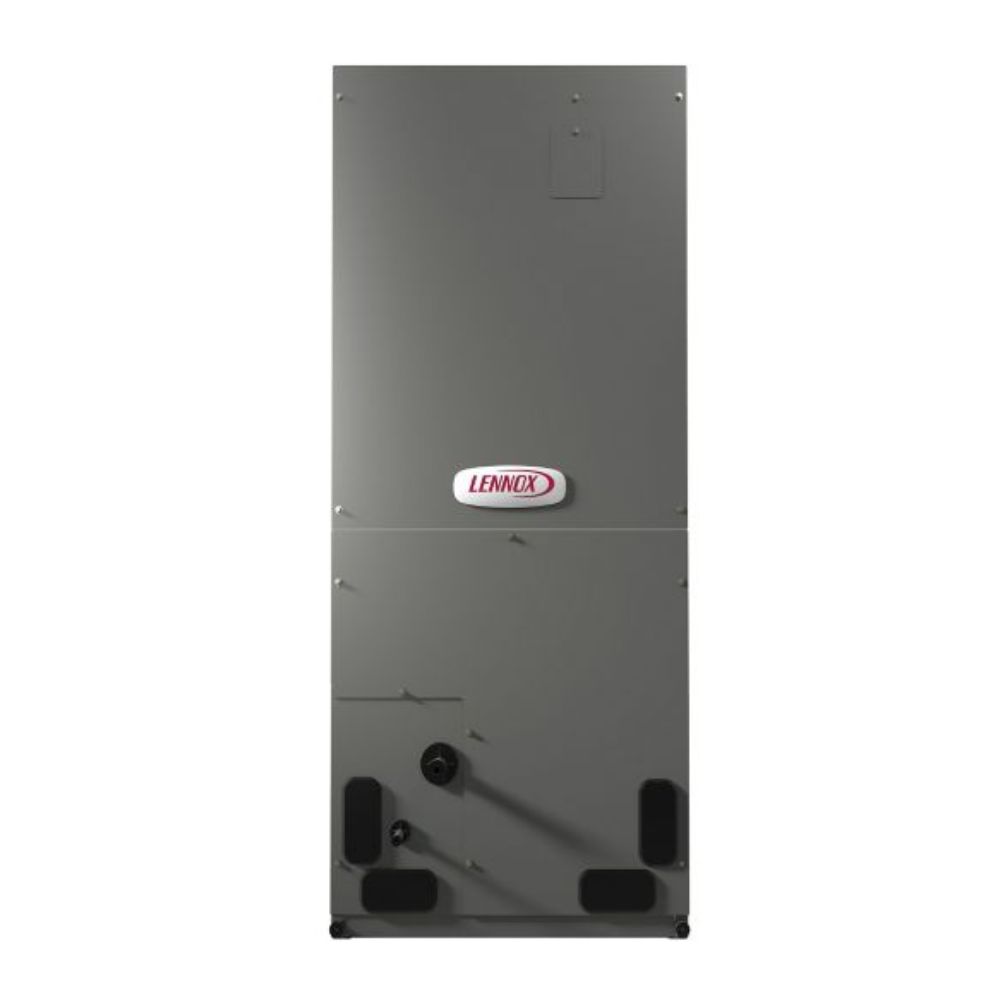

Air Handler Overview
Model #: CBK48MVT-018/024-71
Product Overview
CBK48MVT Air Handler
The CBK48MVT is a high-efficiency, variable-speed air handler offering dependable performance and full compatibility with 2025-compliant refrigerants.
Built with all-aluminum Quantum™ Coil technology, this air handler delivers outstanding resistance to corrosion from indoor environmental contaminants. The unit also features a variable-speed blower motor, which maintains consistent airflow throughout the home and helps minimize temperature fluctuations.
The -71 models are factory-configured for R-454B refrigerant and come equipped with an integrated Refrigerant Detection System (RDS). In the event of a leak, the onboard sensor triggers the mitigation system to initiate a flush sequence—ensuring safe operation and peace of mind.
Energy Efficiency
High-efficiency indoor coil ensures excellent heat transfer with minimal air resistance for optimized energy performance.
Variable-speed blower motor delivers smooth, consistent airflow, enhancing efficiency and reducing temperature swings.
Quiet Operation
Fully insulated cabinet helps minimize sound levels during operation for a quieter indoor environment.
Insulation also helps prevent condensation buildup or “sweating” in humid conditions.
Home Comfort
Optional electric backup heat provides fast, supplemental warmth when needed, enhancing comfort during colder periods.
Reliable Performance
Antimicrobial drain pan helps prevent mold and mildew growth, supporting improved indoor air quality and reducing the chance of drain line clogs.
SEER stands for Seasonal Energy Efficiency Ratio. It measures the cooling efficiency of an air conditioner or heat pump over an entire cooling season. Essentially, it tells you how much cooling output (BTUs) you get for every unit of energy (watt-hour) used.
Higher SEER = more efficient
SEER ratings have traditionally been used in the U.S. to compare energy efficiency across systems.
Example: A 14 SEER unit uses less electricity than a 10 SEER unit to produce the same cooling.
What is SEER2?
SEER2 is the updated efficiency rating standard that reflects new federal testing procedures implemented by the Department of Energy (DOE) in 2023. It measures efficiency more accurately by accounting for real-world conditions, including:
Energy usage in modern airflow and installation configurations
More realistic climate and seasonal variations
Changes in the refrigerants and equipment designs
Key difference: SEER2 ratings tend to be slightly lower than SEER ratings for the same unit, but they provide a truer representation of actual efficiency in your home.
Why SEER2 is the new standard
The DOE updated testing to better match how systems perform in real homes, rather than ideal lab conditions.
It encourages manufacturers to improve real-world efficiency, not just test-case efficiency.
For consumers, SEER2 ensures:
Better long-term energy savings
Improved comfort through more accurate performance expectations
Compliance with modern federal efficiency regulations
In short:
SEER = old efficiency measurement (ideal lab conditions)
SEER2 = modern, realistic efficiency standard (real-world performance)
Better quality = SEER2 units are designed and tested to give actual efficiency and savings, not just theoretical numbers.
Understanding EER vs EER2
What is EER?
EER stands for Energy Efficiency Ratio. It measures an air conditioner or heat pump’s efficiency at a single, specific outdoor temperature, usually 95°F.
Higher EER = more efficient at peak conditions.
Unlike SEER, which averages efficiency over a season, EER tells you how the unit performs under hot, steady-state conditions.
Example: A unit with an EER of 12 produces 12 BTUs of cooling for every watt of electricity consumed.
What is EER2?
EER2 is the updated testing standard introduced by the Department of Energy (DOE) to match the same real-world adjustments as SEER2.
Accounts for modern system designs, refrigerants, and installation configurations.
Measures efficiency more realistically under peak operating conditions, rather than just ideal lab setups.
Like SEER2, EER2 numbers are usually slightly lower than traditional EER, but they are a more accurate reflection of actual performance.
Why EER2 is the new standard
Ensures consistency with SEER2 testing methodology.
Reflects true cooling efficiency under extreme heat, where peak performance matters most.
Helps consumers understand real-world energy use and savings potential during the hottest days.
Meets modern federal efficiency regulations and encourages manufacturers to improve performance under actual conditions.
In short:
EER = old standard, measured under lab conditions at 95°F
EER2 = modern standard, measured under realistic, real-world peak conditions
Better quality = EER2 gives you true peak efficiency, not just theoretical performance.
